FILTER REGULATOR COMBINATION – LUBRICATOR, MODULAR – 1/4, 3/8, 1/2, 3/4, 1″ :
Individual Filter-Regulator combination & Lubricator units easily removable/mountable without disturbing the pipe line
Technical Specifications :
| Model | MG-FRL-1 | MG-FRL-2 | MG-FRL-3 | MG-FRL-4 | MG-FRL-5 |
|---|---|---|---|---|---|
| Medium | Compressed air | ||||
| Port size | G1/4 | G3/8 | G1/2 | G3/4 | G1 |
| Pressure gauge port size | G1/8 | G1/8 | G1/8 | G1/4 | G1/4 |
| Flow rate * (Its / min) | 500 | 1250 | 2800 | 3500 | 4000 |
| Maximum supply pressure (bar) | 10 | ||||
| Regulating pressure range * (bar) | 0.2-2, 0.2-4, 0.5-7, 0.5-10 (Standard) | ||||
| Ambient temperature | -10 to +50 C | ||||
| Medium temperature | +5 to +50 C | ||||
| Filteration (um) | 1, 5, 25, 40 (Standard),50, 100 | ||||
| Min operating flow (Its/min) | 12 | 40 | 45 | 50 | 50 |
| Bowl capacity FRC (ml) (at maximum condensate level) | 9 | 32 | 44 | 165 | 165 |
| Bowl capacity Lubricator (ml) (at maximum oil level) | 0.5 | 1.0 | 1.5 | 2.0 | 2.5 |
| Weight (kg) | 20 | 57 | 152 | 200 | 200 |
| Recommended oil | ISO VG 32 (Servo System 32) | ||||
| Bowl material | Polycarbonate | ||||

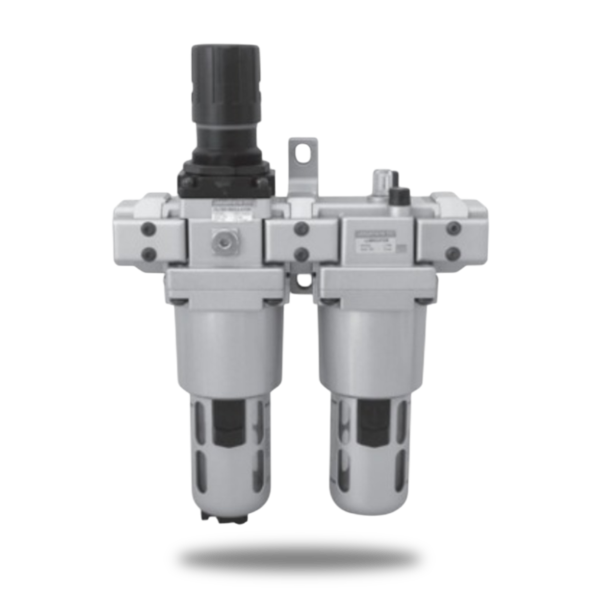

| Installation | Vertical (as shown in the picture) | ||||
| Materials of construction | Aluminium, Bronze, Brass, Steel, Acetal, Polycarbonate, SS, Nitrile | ||||
| Optional accessories* | Pressure gauge | ||||
| Weight (kg) | 0.63 | 1.15 | 2.27 | 4.18 | 4.7 |
