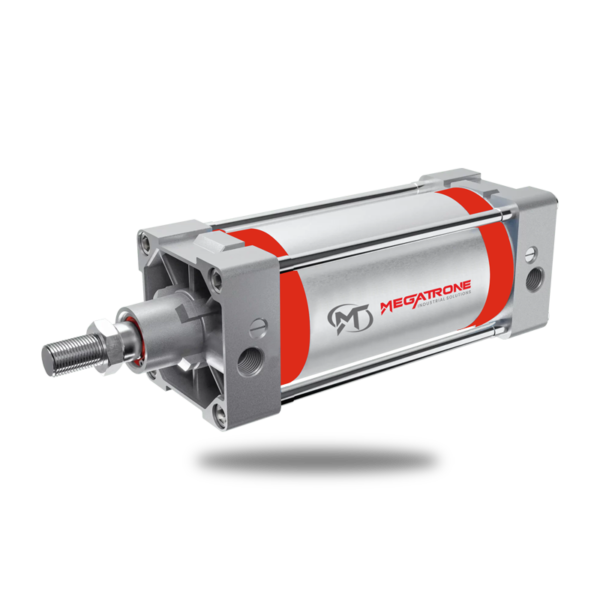

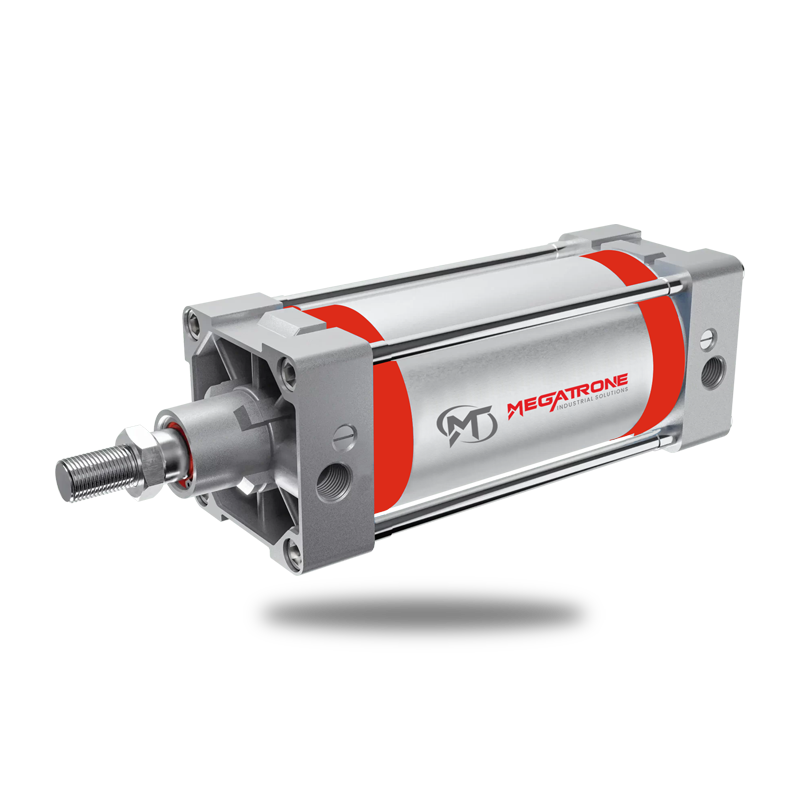

Tie Rod Cylinder (ISO 15552 Standard Dia. 32 To 100 MM)

As per ISO 15552/VDMA 24562 standards

FEATURES

Adjustable cushioning at both ends with elastomer pads
Wide varieties of mountings.
Magnetic and Non magnetic version
Low Friction (Optional)
Optional High temperature (FKM seals) 150°C max.**
Optional – Non corrosive Stainless steel piston rod and piston rod lock nut (SS 304) **

DIGITAL CATALOGUE

Description

Double Acting Cylinders Ø32-100 mm :

As per ISO 15552/VDMA 24562 standards

Cylinder bore Ø (mm)		32	40	50	63	80	100	125
Cushion stroke (mm)		21	23	23	23	26	26	40
Standard strokes* (mm)		25, 50, 80, 100, 125, 160, 200, 250, 300, 320, 400, 500						50, 80, 100, 125, 160, 200, 250, 300, 320, 400, 500
Medium		Compressed air – filtered – lubricated
Ambient temperature		-10° to +60° C
Medium temperature	Regular	+5° to +50°C
Medium temperature	High temperature applications**	+5° to +150°C max.
Materials of construction		Aluminium, Brass, Steel, Acetal, Polyurethane, Nitrile (Regular), FKM (High temperature)
Mountings		Basic cylinder, Foot mounting, Front flange, Rear flange, Male clevis, Male clevis (with spherical bearing), Female clevis, Female clevis (King pin), Front trunnion, Rear trunnion,
Accessories		Clevis foot bracket, Clevis foot bracket (spherical), Wall mounting bracket, Trunnion bracket, Rod end fork, Rod end aligner, Rod end spherical eye

* For Non standard or longer stroke cylinders, contact us

Refer Special Ordering number.

#Applicable only for standard strokes (Upto 500mm)

(force in N: 1N = 0.1 kgf)

(Above values have been worked out taking frictional loss into consideration)
