Pulse Jet Dust Collector Valve

This type of bag filters are operating with a principle known as pulse cycle by which the time interval between pulsing a row of bag to clean them and that row being pulsed again and again.

It is done by a method by which the compressed air is allowed through a tube.

A nozzle or a venturi is place at the top portion of the bag. The following components which are used as follows

  •  Solenoid Valve
  •  Tube Sheets
  •  Compressed air manifold
  •   Venturi
  •   Metallic Cages
  •  Bag supported Cage.
DIGITAL CATALOGUEREQUEST QUOTE
Category:

Description

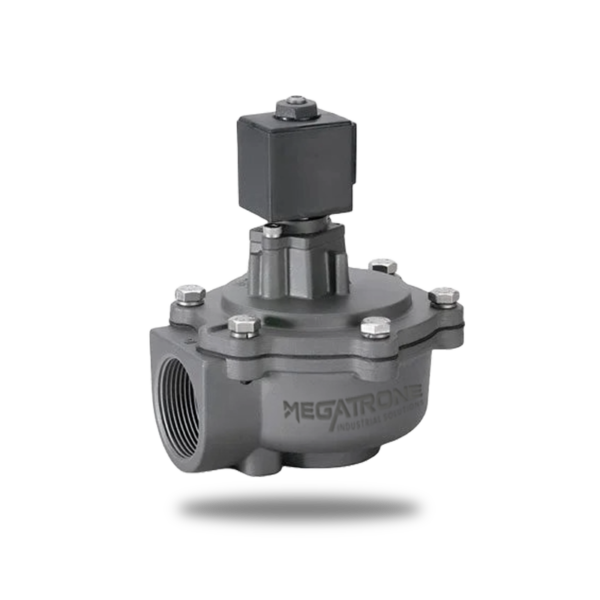

PULSE JET ANGLE TYPE DUST COLLECTOR VALVES (Normally Closed) :

Our pulse jet angle dust collector valves are used in filtering systems of dust collector, gas turbines and desulfurization equipment. Mostly used to clean filters such as cartridge filters, ceramic filters, envelope filters and sintered metal fiber filters.

Technical Specifications :

Our pulse jet angle type dust collector valve is corrosion resistant, durable and known for its high tensile strength. We also offer a customized product as per the customer’s requirement.

Port Refer below technical data sheet (Available BSP, NPT & Dresser Nut)
End Connection Screwed
Body Material Aluminum Die Cast
Media Temp -10° C to 90° C
Diapharagm Nitrile (NBR)
Circumstance Temp -10° C to 70° C
Media Air
Main Features Internal Parts are in superior corrosion resistance steel, (Equivalent to SS316L) Suitable for Air Pollution Control System, Bag Filter Machine
Operating Voltage & Power Consumption Nitrile (NBR)
Optional Feature 90% Power saver series also available
Other Specification Data Available on Request – Brass silencer to reduce extra noise
