Angle Seat Valves – Plastic Body Actuator

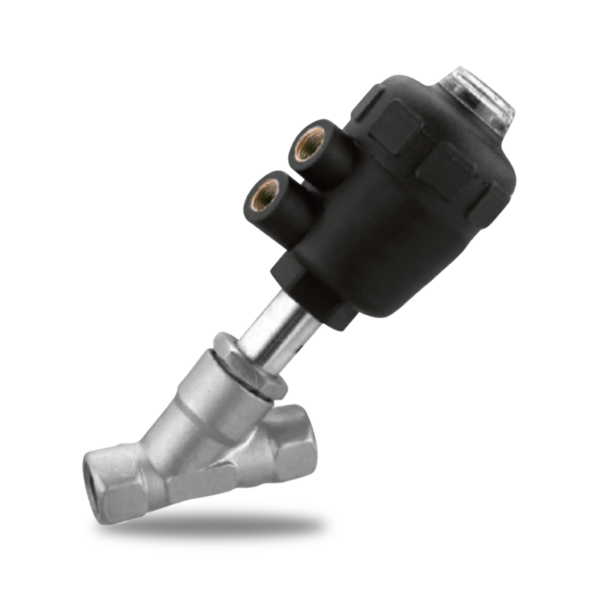

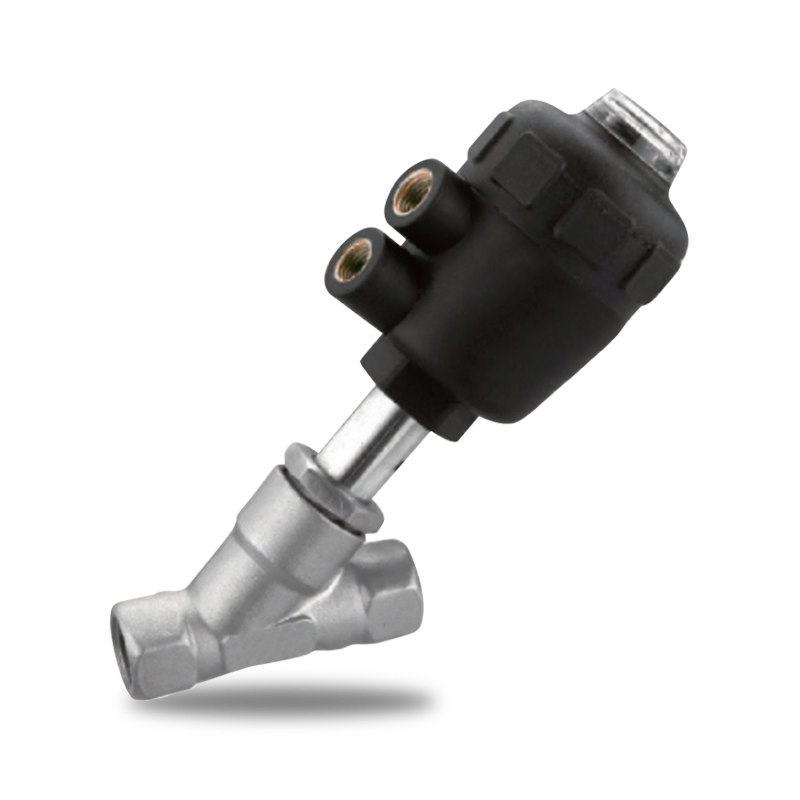

Megatron Plastic Body Actuator Series Angle Valve

FEATURES

  • Normal close/Normal open plastic actuator angle valve, available body: SS304, SS316
  • Multiple seals are available for different medium
  • Wide size range from 3/8″ to 2″
  • Better cost perfromance
DIGITAL CATALOGUEREQUEST QUOTE
Category:

Description

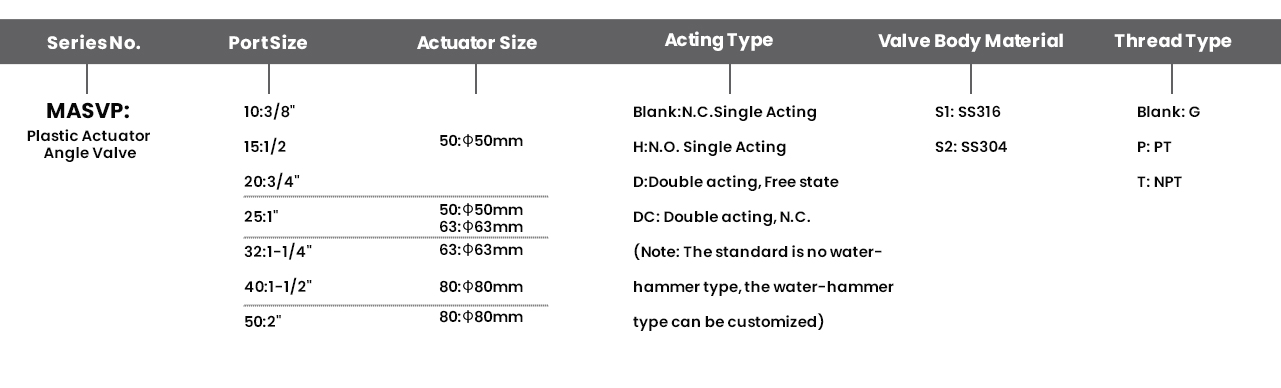

Product Configurator :

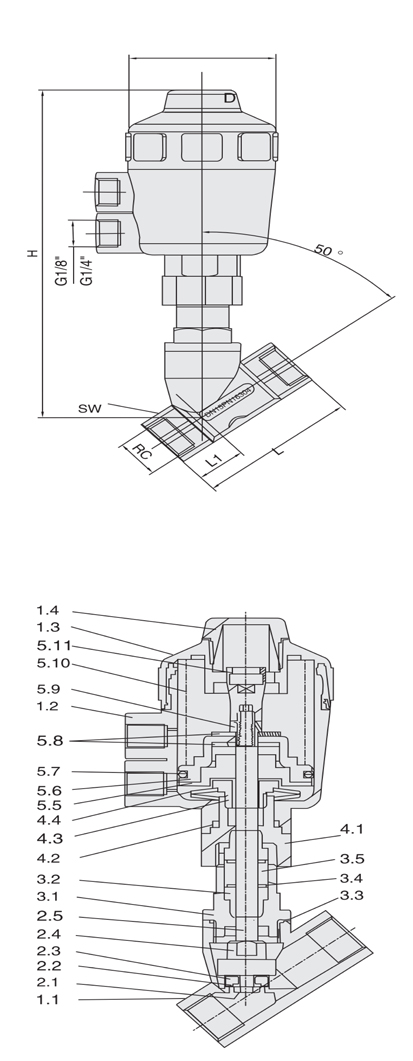

Main Dimension :

Main Dimension
DN Port size L L1 SW H D Actuator size
10 3/8″ 55 17 21 170 54 50
15 1/2″ 70 21 26.5 185 63 50
20 3/4″ 76 23 32 190 63 50
25 1″ 90 25 40 200 63 50
32 1-1/4″ 116 32 50 240 81 63
40 1-1/2″ 116 32 50 240 81 63
50 2″ 140 40 60 300 100 80
65 2-1/2″ 160 50 70 350 120 100
80 3″ 180 60 80 400 140 100
100 4″ 200 70 90 450 160 100
List of Parts
1.1 Body 3.1 Screw connector 5.5 Piston
1.2 Cylinder 3.2 V sealing 5.6 Flange
1.3 Cylinder head 3.3 Seal ring 5.7 Seal ring
1.4 Ornament cover 3.4 Gasket 5.8 Gasket
2.1 Bolt 3.5 Spring 5.9 Hexagon nut
2.2 Orifice plate seal 4.1 Washer 5.10 Spring
2.3 Seal disc 4.2 Nut 5.11 Position indicator
2.4 Disc 4.3 Lock washer
2.5 Stem 4.4 Cap
