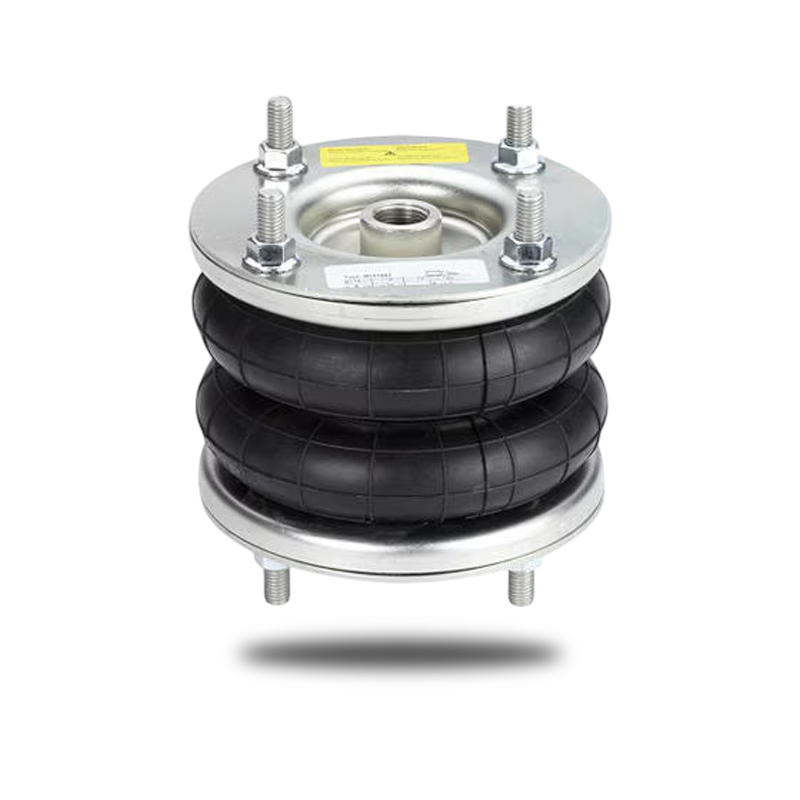

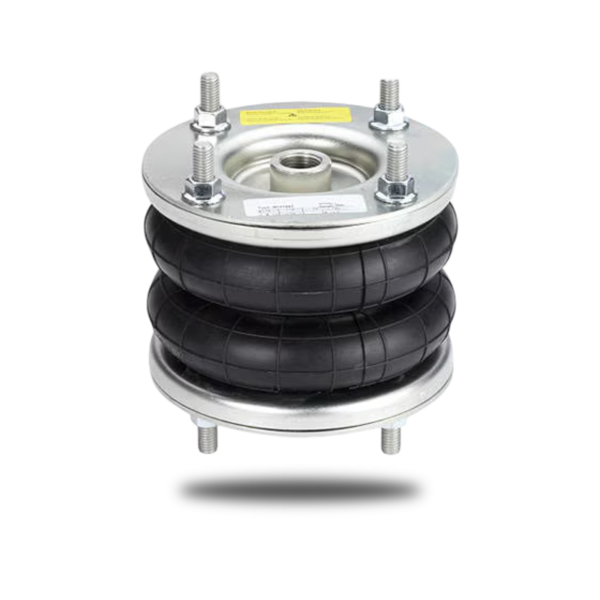

Air Bellows

Air bellows are the ideal choice and can be used in a number of applications, including high force over a short stroke length, vibration dampening and providing tipping moments. Manufactured from fabric reinforced synthetic rubber in one, two or three convolutions according to stroke and model. They incorporate no reciprocating metal parts and so provide virtually frictionless thrust compared with conventional pneumatic cylinders. All models are single acting only.

The return stroke is provided in part by the natural spring action of the bellows but more usually by the load itself. The simplicity of construction provides an extremely long, virtually maintenance-free service life even under arduous conditions. Air bellows offer a maintenance free, lubrication free option with almost frictionless operation.

FEATURES

  • High thrust and frictionless movement
  • No maintenance or lubrification, oil free
  • Short stroke for high force application
  • Easy to install, no precise alignment
  • Easy to work
  • Single acting use as a cylinder
  • High isolation level, use as an isolator
DIGITAL CATALOGUEREQUEST QUOTE
Category:

Description

Air Bellows Single Acting :

  • Ø 6 … 26 inch (152 … 660 mm)
  • Almost Frictionless Operation
  • No Maintenance or Lubrication
  • High Isolation Level For Vibration Application
  • Very Easy to Install – No Alignment Problems

Typical Applications :

  •  Actuator, Air Spring, Or Vibration Isolation

FEATURES :

Medium :
Compressed Air Lubricated
or Unlubricated, Nitrogen,
Water (With Glycol)
Operation:
Single Acting

Operation:

Single Acting

Nominal Diameters :6, 8, 10, 12, 14 1/2, 16, 21, 26
Inches

Strokes :

From 55 … 430 mm max.,
depending on diameters
& number of convolutions

Operating Temperature :for MG/91000 (Standard)
-30° … +50°C (-22° … +122°F)
-40° … +70°C* (-40° … +158°F)*

Operating Pressure :

5,5 Bar (79 PSI) Recommended
Dynamic Pressure
8 Bar (116 PSI) Maximum

Materials :End Plates : Steel, Chrome Plated
Studs : Steel, Zinc Plated
Central Ring : Aluminium Or Steel,
Chrome Plated, Partly Moulded In
Bellow : MG/91000, MG/92000:

Technical Specifications :

Model MG/91061 MG/91062 MG/91081 MG/91082 MG/91101 MG/91102 MG/91103 MG/91121 MG/91122
Cylinder Ø [inch] 6" 6" 8" 8" 10" 10" 10" 12" 12"
Port Size G1/2 G1/2 G1/2 G1/2 G1/2 G1/2 G1/2 G1/2 G1/2
Nominal Ø (Inch) x Convolutions 6" x 1 6" x 2 8" x 1 8" x 2 10" x 1 10" x 2 10" x 3 12" x 1 12" x 2
Stroke [mm] 55 115 75 175 100 225 330 100 225
Installation height min [mm] 50 75 50 75 50 75 100 50 75
Recomended max working height [mm] 95 170 115 220 135 245 350 135 245
Installation height max [mm] 105 190 130 250 150 300 430 150 300
Retracting force to rech min height [N] 140 220 220 350 150 150 250 200 250
Force at 6 bar [N] depending from the stroke Correct Page nos. 5 & 6
Model MG/91123 MG/91141 MG/91142 MG/91143 MG/91162 MG/91163 MG/92212 MG/92262
Cylinder Ø [inch] 12" 14 1/2" 14 1/2" 16" 16" 21" 26"
Port Size G1/2 G1/2 G1/2 G1/2 G1/2 G1/2 - -
Nominal Ø (Inch) x Convolutions 12X3 14 1/2" x 1 14 1/2" x 2 14 1/2" x 3 16 x 2 16 x 3 21" X 2 20" X 2
Stroke [mm] 330 100 265 380 315 430 251 400
Installation height min [mm] 100 50 75 100 75 120 84 100
Recomended max working height [mm] 350 135 290 420 350 475 284 425
Installation height max [mm] 430 150 340 480 390 550 335 500
Retracting force to rech min height [N] 250 200 280 330 250 100 311 400
Force at 6 bar [N] depending from the stroke See graph on page next pages, continue..
